Tutorial–ASP.Net MVC 3, claim-based architecture and Windows Azure ACS (5)

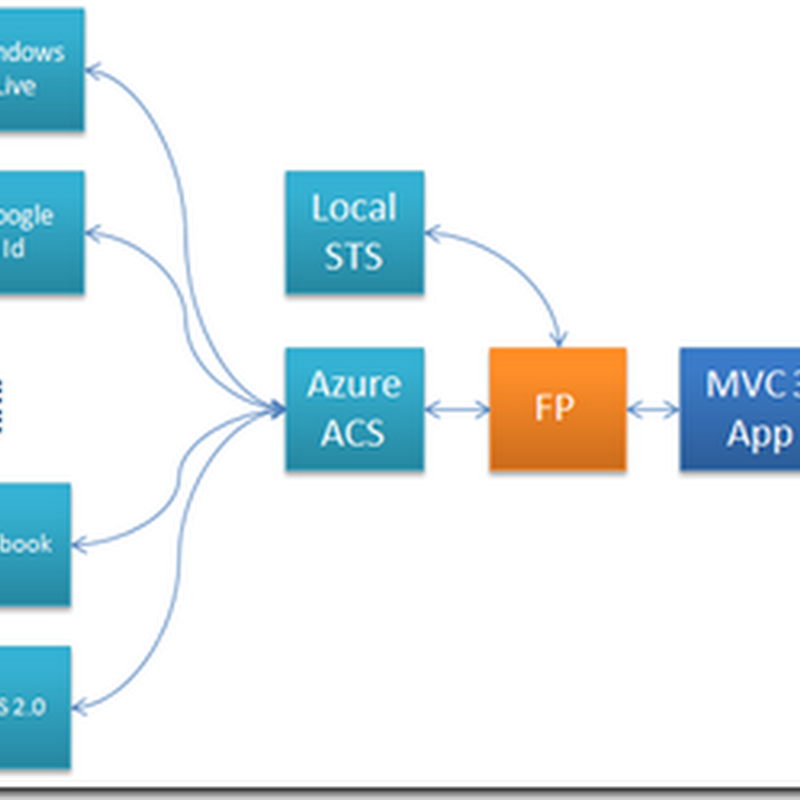

Finally we are ready to implement our final scenario. Again, the goal is to allow users to logon to our ASP.Net MVC 3 service site using either a local id, or any supported ids (Google, Windows Live, and Yahoo! to start with). And our service site should be shield from most of the complexity of federating with multiple identity providers.This part involves quite some changes in the STS code, as we are extending the STS project to serve as both a FP and a STS. However, the service project remains intact. There’s even no configuration updates. As far as the service project concerns, it’s talking to a trusted FP, and it doesn’t need to worry about anything else.

Part I: Relocate local STS.

In this part we’ll move the Default.aspx page to a sub-folder, and set up the sub-foder to use form authentication to preserve local STS functionality.

1. In STS project, create a new “STS” folder.
2. Move Default.aspx page into this folder and remove the file to TokenPoster.aspx. Renaming an ASP.Net page is a little tricky, you need to manually verify if all class names in both code-behind and aspx page are updated correctly. And you may have to reload the project to eliminate some confusions of Visual Studio.
3. Add a new Default.aspx page to the root folder of STS project. This page displays two options for user to pick from a local STS or ACS.
4. Add two buttons to the page:

   <asp:LinkButton Text="Use Local STS" runat="server" ID="btnLocalSTS"
               onclick="btnLocalSTS_Click" /><br />
   <asp:LinkButton Text="Use Azure ACS" runat="server" ID="btnACS"
               onclick="btnACS_Click" />

5. In code-behind, put in the following code:

   protected void Page_Load(object sender, EventArgs e)
   {
        if (!string.IsNullOrEmpty(Request.QueryString[WSFederationConstants.Parameters.Action]))
           ViewState["F-Action"] = Request.QueryString[WSFederationConstants.Parameters.Action];
        if (!string.IsNullOrEmpty(Request.QueryString["wtrealm"]))
           ViewState["F-wtrealm"] = Request.QueryString["wtrealm"];
   }
   protected void btnLocalSTS_Click(object sender, EventArgs e)
   {
       try
       {
           Response.Redirect("STS/TokenPoster.aspx?wa=" + ViewState["F-Action"].ToString() + "&wtrealm=" + ViewState["F-wtrealm"].ToString().Replace(":", "%3A").Replace("/", "%2F"));
       }
       catch (Exception exception)
       {
           throw new Exception("An unexpected error occurred when processing the request. See inner exception for details.", exception);
       }
   }

6. Modify web.config to put STS folder under form authentication protection:

   <configuration>
     ......
     <location path="STS">
       <system.web>
         <authorization>
           <deny users="?"/>
         </authorization>
       </system.web>
     </location>
     <system.web>
       ......
       <authentication mode="Forms">
         <forms loginUrl="Login.aspx"/>
       </authentication>
       ......

7. Also, we need to disable default FAM redirecting by setting passiveRedirectEnabled="false"

After these modifications you should be able to use the local STS to logon. The code in step 6 is straightforward – it saves logon request when page is loaded, and it forwards the request to TokenPoster.aspx (former Default.aspx) when user clicks on the local STS link in the new Default.aspx page.

Part II: Re-enabling ACS.

In step 7 above we disabled FAM default redirecting. To put FAM back to work again, we’ll need to trigger the authentication process in the code. Modify code-behind of Default.aspx page:

protected void Page_Load(object sender, EventArgs e)
{
   if (!string.IsNullOrEmpty(Request.QueryString[WSFederationConstants.Parameters.Action]))
        ViewState["F-Action"] = Request.QueryString[WSFederationConstants.Parameters.Action];
    if (!string.IsNullOrEmpty(Request.QueryString["wtrealm"]))
        ViewState["F-wtrealm"] = Request.QueryString["wtrealm"];

    var fam = FederatedAuthentication.WSFederationAuthenticationModule;
    if (fam.CanReadSignInResponse(Request, true))
    {
        string url = fam.GetSignInResponseMessage(Request).Context;
        SignInRequestMessage requestMessage = (SignInRequestMessage)WSFederationMessage.CreateFromUri(new Uri(url + "?wa=wsignin1.0&wtrealm=" + url.Replace(":", "%3A").Replace("/", "%2F");));
        if (User != null && User.Identity != null && User.Identity.IsAuthenticated)
        {
            SecurityTokenService sts = new CustomSecurityTokenService(CustomSecurityTokenServiceConfiguration.Current);
            SignInResponseMessage responseMessage = FederatedPassiveSecurityTokenServiceOperations.ProcessSignInRequest(requestMessage, User, sts);
            FederatedPassiveSecurityTokenServiceOperations.ProcessSignInResponse(responseMessage, Response);
        }
    }
}

protected void btnACS_Click(object sender, EventArgs e)
{
    var fam = FederatedAuthentication.WSFederationAuthenticationModule;
    var signIn = new SignInRequestMessage(new Uri(fam.Issuer), "http://localhost:4011/ZerodistWeb_STS/");
    signIn.Context = ViewState["F-wtrealm"].ToString();
    Response.Redirect(signIn.WriteQueryString());
}

When ACS button is clicked, a sign in request is generated and forwarded to ACS. After authentication, ACS redirects back to the Default.aspx page (as configured in ACS). Then, in the Page_Load event, we examine if we can read a response message. If so, we’ll use our STS to issue a security token back to the MVC application.

Part III: Test run.

1. Compile and launch.
2. Type in http://127.0.0.1:81/Portal in address bar.

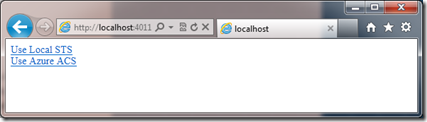

3. You’ll see the new selection page:
4. Click on “Use Azure ACS” link. You’ll be redirected to another IDP selection page:

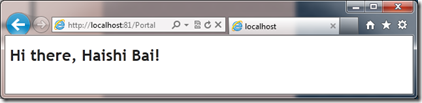

5. Pick an IDP and log in. You’ll be redirected back to Portal page with granted access:
6. You can repeat the steps to try out Admin page with different IDPs. It should all work fine. Optionally you can also change the STS to grant Admin role to more user names (currently we only grant Admin role to user with name “Admin”).

What’s next?

Congratulations! You’ve made this far. That’s something, isn’t?

However, our quest is far from over. We still need to enable HTTPS, to enable token encryption, to extend STS to do actual authentication/authorization, to deploy everything on to Azure platform … so, keep tuned!
